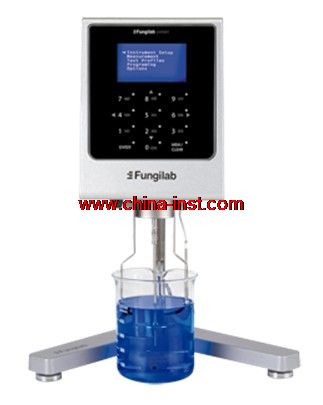

Expert series專家系列

Add essential performances to determine viscosity and other rheological features to homogenious samples.

Features

Touch keyboard
Latest keyboarding technology,
comfortable and easy to handle (12 Keys)

Languages options
English / French / German / Catalan / Spanish / Italian / Japanese / Polish / Dutch / Portuguese

Program features
Time to torque
Time to stop
10 working memories
Customizable option (54 Speeds)
Programmable: Multistep/Ramp
Unit Converter (IS or CGS)

Viscosity readings
Absolute viscosity (cP or mPa·s)
Apparent Viscosity (cP or mPa·s)
Kinematic viscosity (cSt, mm2/sec)
(Density introduced by the user)

Auto-test
It checks the internal function in order to make the unit ready to use

Universal adapter
All accessories such as Brookfield (Optional)

Graphic display
Provides huge range of graphical options

10 working memories
Set up the unit and get it ready to be used every day choosing the memory you need

USB interface
Faster transfer data to the computer

Data displayed顯示
Selected Speed 轉速
Selected Spindle 轉子
Viscosity readings (cP or mPa·s or cSt) 粘度值
Percentage of Full Scale Range (%) 扭矩
Sample Temperature (ºC or ºF) 溫度
Shear rate (with coaxial spindles) (s-1)剪切速率
Shear Stress (with coaxial spindles) (N/m2)剪切應力
Density (introduced by the user) (g/cm3) 密度

Datalogger
(software included)
USB allows data transfer to a Excel format

數據采集器
（包括軟件）
，USB允許將數據傳輸到一個Excel格式

Other features
Time to torque: target torque pre-setting device.
Time to stop: target time pre-setting device.
AUTO-TEST with sound and visual malfuction alarm
AUTO-ARANGE function

Spindles
AISI 316 stainless steel spindles, easily identified by number and letter when changed according to range of viscosity.

These are the standards our units follow: 執行標準
BS: 6075, 5350
ISO: 2555, 1652
ASTM: 115, 789, 1076, 1084, 1286, 1417, 1439, 1638, 1824, 2196, 2336, 2364, 2393, 2556, 2669, 2849, 2983, 2994, 3232, 3236, 3716

CodeModel型號Measuring Range (cP)測量范圍Speed (r.p.m)轉速Number of speeds檔位

V300003	EXPERT L	20 - 6.000.000	0.01 - 200	54
V300002	EXPERT R	100 - 40.000.000	0.01 - 200	54
V300001	EXPERT H	200 - 106.000.000	0.01 - 200	54

技術規格

Precision: ± 1% of full scale 精度

Resolution:分辨率
With low viscosity adapter: 0.01
For lower than 10.000 viscosity cP: 0.1
For viscosity equal to or above 10.000 cP: 1

Repeatability: 0.2%重復性

Thermometer features:
Temperature margins: 0oC to +100oC溫度范圍
32oF to 212.0 oF
Resolution: 0.1oC / 0.1722 oF Precision: +/- 0.1 oC分辨率
Type of probe: PT100

Supplied at 100-240 VAC, 50/60 Hz
